The imagery on this page is supporting material for a paper entitled A New Genus and Species of the Shallow-Water Anglerfish Family Tetrabrachiidae (Teleostei: Lophiiformes: Antennarioidei) from Australia and Indonesia, by T.W. Pietsch, J.W. Johnson, and R.J. Arnold, 2009 (Copeia 2009: 483-493). The abstract is as follows:

       A new genus and species of anglerfish, Dibrachichthys melanurus, of the antennarioid family        Tetrabrachiidae, is described on the basis of 42 specimens collected in near-shore coastal waters of        Queensland, Northern Territory, Western Australia, and the Aru Islands, southeastern Indonesia. It        differs most strikingly from its sister species, Tetrabrachium ocellatum, the only previously described        tetrabrachiid, in having the pectoral fin entire, rather than having the rays divided into two distinct        sections, a feature that was heretofore diagnostic for the family. The new taxon is diagnosed,        described, and compared osteologically with its sister taxon using high-resolution, X-ray computed        tomography.

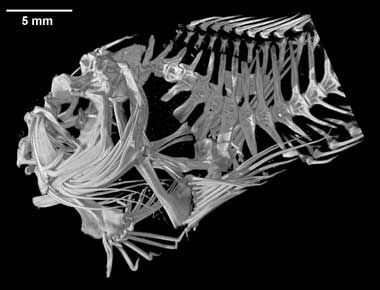

This male specimen, a paratype, was made available to The University of Texas High-Resolution X-ray CT Facility for scanning by Dr. Ted Pietsch of the University of Washington.

Click on the thumbnail to the left for photos of the female holotype specimen in standard views.

The specimen was scanned by Jessie Maisano on 3 July 2008. The cubic voxels measure 0.027 mm.

Literature

Bradbury, M. G. 1967. The genera of batfishes (family Ogcocephalidae). Copeia 1967:399–422.

Bradbury, M. G. 1988. Rare fishes of the deep-sea genus Halieutopsis: a review with descriptions of four new species (Lophiiformes: Ogcocephalidae). Fieldiana Zoology (n.s.) 44:1–22.

Bradbury, M. G. 1999. A review of the fish genus Dibranchus, with descriptions of new species and a new genus, Solocisquama (Lophiiformes: Ogcocephalidae). Proceedings of the California Academy of Sciences 51:259–310.

Caruso, J. H. 1975. Sexual dimorphism of the olfactory organs of lophiids. Copeia 1975:380–381.

Drummond, A. J., M. Kearse, J. Heled, R. Moir, T. Thierer, B. Ashton, A. Wilson, and S. Stones-Havas. 2007. GENEIOUS, v. 3.7. Biomatters Ltd., Auckland, New Zealand.Nature 421:807–814.

Edgar, R. C. 2004. MUSCLE: multiple sequence alignment with high accuracy and high throughput. Nucleic Acids Research 32:1792–1797.

Günther, A. 1880. Report of the shore fishes procured during the voyage of H.M.S. Challenger in the years 1873– 1876. Report of the Scientific Research of the Voyage of the Challenger, Zoology, 1, part 6.

Leviton, A. E., R. H. Gibbs, Jr., E. Heal, and C. E. Dawson. 1985. Standards in herpetology and ichthyology: part I. Standard symbolic codes for institutional resource collections in herpetology and ichthyology. Copeia 1985:802–832.

Nybelin, O. 1963. Zur morphologie und terminologie des Schwanzskelettes der Actinopterygier. Arkiv för Zoologi 15:485–516.

Pietsch, T. W. 1981. The osteology and relationships of the anglerfish genus Tetrabrachium with comments on lophiiform classification. United States Fishery Bulletin 79:387–419.

Pietsch, T. W. 1984. Lophiiformes: development and relationships, p. 320–325. In: Ontogeny and Systematics of Fishes. H. G. Moser, W. J. Richards, D. M. Cohen, M. P. Fahay, A. W. Kendall, Jr., and S. L. Richardson (eds.). American Society of Ichthyologists and Herpetologists, Special Publication No. 1.

Pietsch, T. W. 2005. Dimorphism, parasitism, and sex revisited: modes of reproduction among deep-sea ceratioid anglerfishes (Teleostei: Lophiiformes). Ichthyological Research 52:207–236.

Pietsch, T. W., and D. B. Grobecker. 1987. Frogfishes of the World: Systematics, Zoogeography, and Behavioral Ecology. Stanford University Press, Stanford, California.

Pitcher, C. R., P. Doherty, P. Arnold, J. Hooper, N. Gribble, C. Bartlett, M. Browne, N. Campbell, T. Cannard, M. Cappo, G. Carini, S. Chalmers, S. Cheers, D. Chetwynd, A. Colefax, R. Coles, S. Cook, P. Davie, G. De’ath, D. Devereux, B. Done, T. Donovan, B. Ehrke, N. Ellis, G. Ericson, I. Fellegara, K. Forcey, M. Furey, D. Gledhill, N. Good, S. Gordon, M. Haywood, P. Hendriks, I. Jacobsen, J. Johnson, M. Jones, S. Kinninmoth, S. Kistle, P. Last, A. Leite, S. Marks, I. McLeod, S. Oczkowicz, M. Robinson, C. Rose, D. Seabright, J. Sheils, M. Sherlock, P. Skelton, D. Smith, G. Smith, P. Speare, M. Stowar, C. Strickland, C. Van der Geest, W. Venables, C. Walsh, T. Wassenberg, A. Welna, and G. Yearsley. 2007. Seabed Biodiversity on the Continental Shelf of the Great Barrier Reef World Heritage Area. AIMS/CSIRO/QM/QDPI Final Report to CRC Reef Research.

Potthoff, T. 1984. Clearing and staining techniques, p. 35–37. In: Ontogeny and Systematics of Fishes. H. G. Moser, W. J. Richards, D. M. Cohen, M. P. Fahay, A.W. Kendall, Jr., and S. L. Richardson (eds.).American Society of Ichthyology and Herpetology, Special Publication No. 1.

Rozen, S., and H. J. Skaletsky. 2000. Primer3 on the WWW for general users and for biologist programmers, p. 365–386. In: Bioinformatics Methods and Protocols: Methods in Molecular Biology. S. Krawetz and S. Misener (eds.). Humana Press, Totowa, New Jersey.

Ward, R. D., T. S. Zemlak, B. H. Innes, P. R. Last, and P. D. N. Hebert. 2005. Barcoding Australia’s fish species. Philosophical Transactions of the Royal Society of London B 360:1847–1857.

Whitley, G. P. 1935. Studies in ichthyology. No. 9. Records of the Australian Museum 19:215–250.

Click on the thumbnail to the left for labeled images of Dibrachichthys melanurus and its sister, Tetrabrachium ocellatum, in lateral view.

Click on the thumbnail to the left for labeled images of Dibrachichthys melanurus and its sister, Tetrabrachium ocellatum, in dorsal view.
